Series Bento Starck Box Toilets #201509
Toilet close-coupled #201509
Design by Philippe Starck

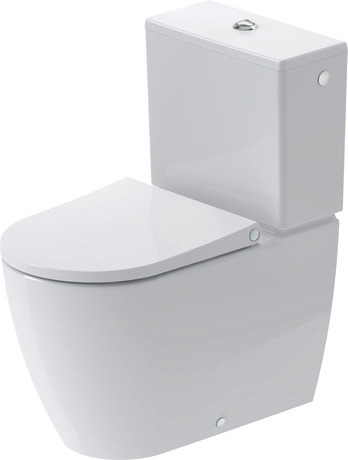

Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Flush water quantity: 4,5/3 l, Washdown model, Flushing rim: Rimless, Outlet drain: horizontal, Position outlet: Back, Flush principle: washdown model, For bowl mounted cistern, Length adjustable, Incl. mounting material, Outlet dimensions for Vario connecting bend vertical: 160 - 225 mm, Outlet dimensions for Vario outlet set vertical/horizontal: 70 - 165 mm, Unified Water Label (UWL) Class: 1
Color
Variants
© White High Gloss, HygieneGlaze, Outlet dimensions for Vario connecting bend vertical: 155 - 225 mm, Outlet dimensions for Vario outlet set vertical/horizontal: 70 - 170 mm |
370x415 mm | 35.400 kg | 2015092000 | 446.00 £ * | |
*Prices stated do not include VAT and are a basis for settlement with a wholesaler. Prices are non-binding. Wholesaler or other reseller pricing may vary. We reserve the right to amend pricing without prior notification. Errors and omissions excepted.
Accessory
| Dimension | Weight | Order number | ||
|
Vario connecting bend | 351 mm | 0.87 kg | 899025 |
| Diamter of inlet: 75 mm, Diameter drain: 90 mm | ||||
|
Connector Set | 397 mm | 1.29 kg | 001422 |
| Outlet drains |
Suitable products
Downloads
Hint:

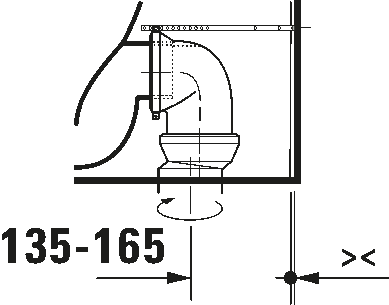

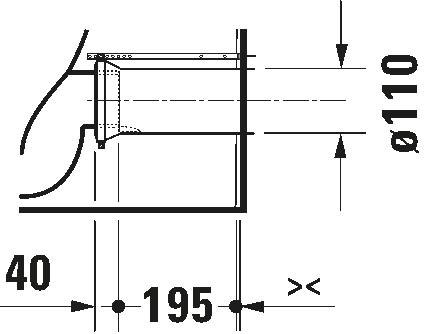

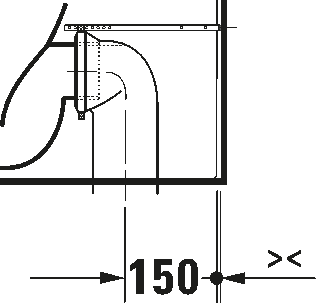

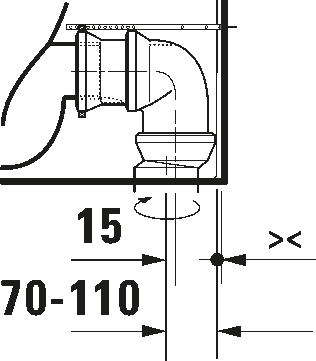

Remarks: All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in mm and are non-binding. Exact measurements, in particular for customised installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
